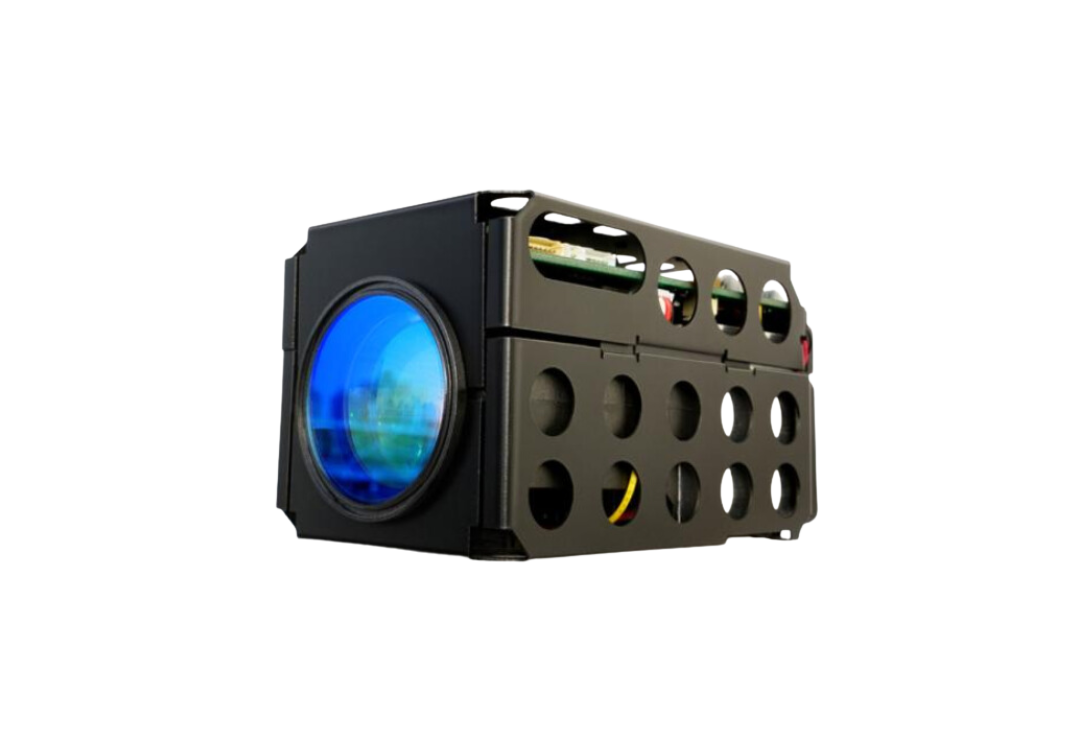

SWIR 1550nm 500m Laser Illuminator Module
IR-1550-2W-500· Smart Sync Zoom, perfectly compatible with VISHEEN SWIR Camera Modules.
· -20°C extreme cold start.
· Smart match, Hot-swappable.
· Intelligent auto-dimming.
SWIR 1550nm 500m Laser Illuminator Module
IR-1550-2W-500
Specifications
| MAX. Distance | ≥500m |
| Wavelength | 1550±15nm |
| Illumination Angle | Sync Zoom，1.0° ～ 30° continuous |
| Zoom Speed | ≤4 Sec（Tele～Wide） |
| Laser chip power | 2.2±0.2W |
| Output Power | 2.0±0.2W |
| Power | DC12V±10% |
| Power Consumption | ＜21.0W |
| Control Interface | RS-485, Comm UART |
| Protocols | Pelco-D / View Sheen Private Commands: 9600bps (default); 4800bps, 2400bps (options) |
| Work Temperature | -20℃～+55℃ |
| Storage Temperature | -20℃~70℃ |
| Dimension | 65mm×66mm×128mm（W×H×L） |
| Weight | 400g |
