30X 2MP uye 1280 Thermal Dual Sensor 3 - Axis Kudzikamisa Drone Gimbal Kamera

VS-UAP2030NA-RT6-25

·Zvinoonekwa: 30X Optical zoom block kamera, 2.13Megapixels.

·Thermal: 25mm lens, max vhidhiyo resolution 1280 * 1024

·3 - Axis gimbal stabilizer, ± 0.008 dhigirii kutonga chaiko

·Kutsigira kuwanda kweruzivo rweGPS mumavhidhiyo, subtitle mafaera, snapshots

·Tsigira kutsvaga kwakangwara

·Vhura protocol kufambisa yechitatu - bato mutengi kubatanidzwa

30X 2MP and 1280 Thermal Dual Sensor 3-Axis Stabilization Drone Gimbal Camera

Overview Zvinotsanangurwa Download

WANA PRICING/INFO

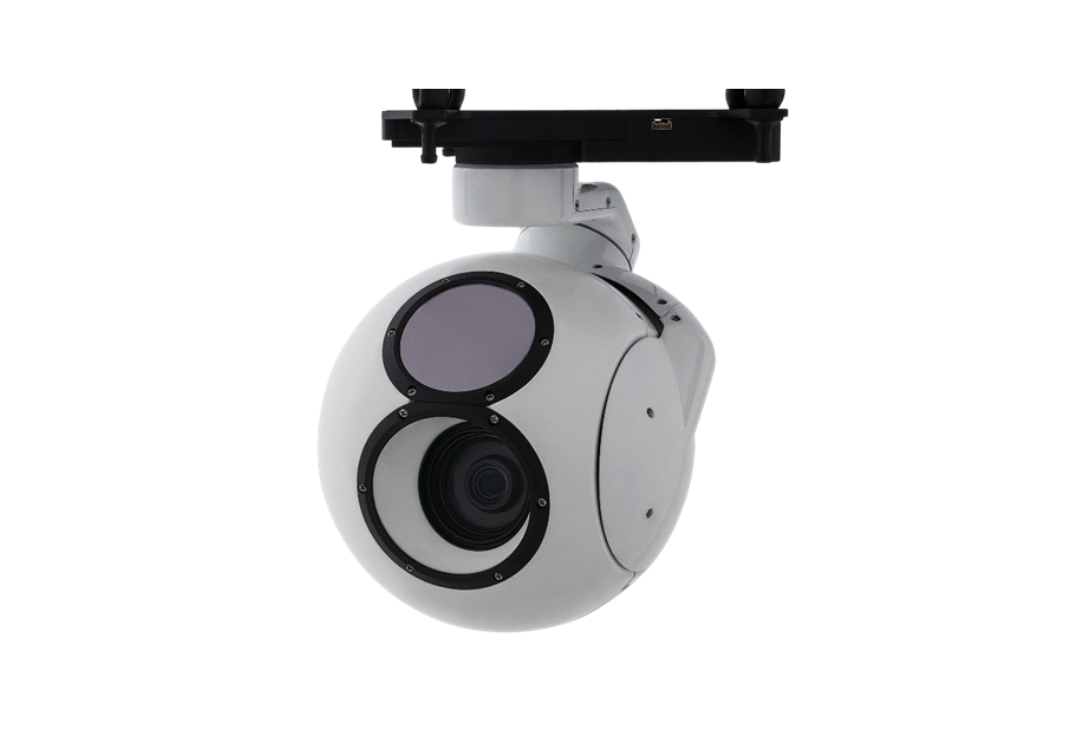

30X 2MP uye 1280 Thermal Dual Sensor 3 - Axis Kudzikamisa Drone Gimbal Kamera VS-UAP2030NA-RT6-25

Iyo 30x mbiri mbiri sensor bispectrum payload yakazara-yakabatanidzwa, yakakwira performance electro-optical kamera payload yakagadzirirwa kutarisa kure. Yakashongedzerwa ne 1/2.8 inch 30x 1080P HD block zoom kamera uye 640 thermal kamera module, vashandisi havachamanikidzwa nemasikati.

Iyo payload inopa 3 - axis kudzikamisa kutora yakadzama vhidhiyo uye ichiri mafoto, kunyangwe pasi pemamiriro ekunze akanyanya. A high-powered zoom zvinoreva kuti chero kufamba muhurongwa kunokwidziridzwa, saka kugadzikana kwakakosha zvakanyanya. Iyo gimbal inosanganisa inotungamira gimbal tekinoroji yekudzikamisa mukati me ± 0.008 ° uye yakafanana chaiyo yekutonga. Izvi zvinogonesa kureba-kuongororwa kwemhando iyo inogara yakakwirira mukuvimbika.

Inoshanda uye yakanakira pasi inodzora software inotsigira inonongedza zoom, kiyi imwe inodzokera pakati, mbeva kana yekubata screen control

Yakazara basa, tsigira yakakwirira tembiricha yekuona, yakangwara yekutevera.

Kushandisa network port kudzora gimbal, kusiya tsika yeHDMI nzira, ine kuvimbika kwakanaka, kuenderana kwakasimba uye basa rine simba.

Zvinotsanangurwa

Tsanangudzo
Model	UAP2030HA-RT6-25
Kushanda Voltage	12V-25V
Simba	8.4W
Kurema	860g(Pasina IDU)
Memory Card	Micro SD
Dimension(LWH)	140×140×190mm
Interface	Ethernet(RTSP)
Live kutapurirana kugadzirisa	Thermal: 640 × 512 Inooneka: 720P, 1080P
ZVAKAITIKA
Basa Tembiricha Range	-20~60°C
Storage Temperature Range	-40~80°C
GIMBAL
Angular Vibration Range	±0.008°
Gomo	Detachable
Controllable Range	Tilt:+70° ~ -90°;Yaw:360°Endless
Mechanical Range	Tilt:+75° ~ -100°;Yaw: 360°Zvisingaperi
Max Controllable Speed	Kurerekera:120º/s; Pan180º/s;
Auto- Tracking	Support
Makamera
Visible
Sensor	CMOS:1/2.8″; 2.16Megapixel
Lens	30X Optical Zoom, F: 4.7~141mmmm, FOV(Horizontal): 60~2.3°
Photo Formats	JPEG
Vhidhiyo Formats	MP4
Operation Modes	Bata, Rekodha
Defog	E-Defog
Exposure Mode	Auto
Max.Resolution	1920×1080@25/30fps
Noise Reduction	2D/3D
Yemagetsi Shutter Speed	1/3 ~ 1/30000s
OSD	Support
TapZoom	Support
TapZoom Range	1 × ~ 30 × Optical Zoom
Imwe Kiyi kune 1x Mufananidzo	Support
Thermal
Thermal Imager	Vox Uncooled Microbolometer
Max.Resolution	1280x1024@25fps
Sensitivity (NETD)	≤50mk@25°C,F#1.0
Full Frame Rates	50Hz
Lens	25mm, Athermalized
