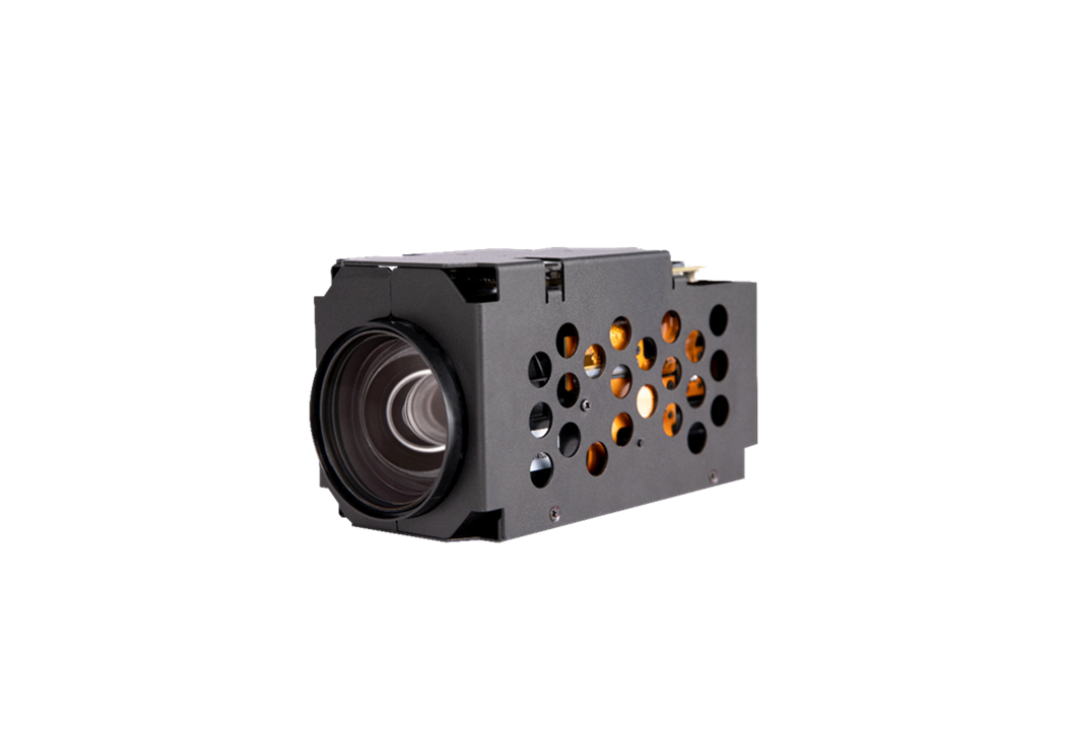

NDAA Complicant 4K 8MP 37× Zoom Network IP AI Camera Module
VS-SCZ8037KI-81/1.8″ 8MP 4K UHD Sensor
6.5~240mm 37x Zoom
6.5~240mm 37x Zoom
NDAA Complicant 4K 8MP 37× Zoom Network IP AI Camera Module
VS-SCZ8037KI-8
> 1/1.8″ high sensitivity image sensor, Min. Illumination: 0. 005Lux (Colour).
> 37× optical zoom, Fast and accurate autofocus.
> Max. Resolution: 3840*2160@25/30fps.
> Equipped with Novatek main control chip.NDAA compliant.
> Supports H.265, Higher encoding compression rate.
> Supports IVS: Tripwire, Intrusion, Loitering, etc.
Features
A small package with a big punch
Don't be fooled by its compact size, the camera module offers a 240mm zoom lens, and high definition image of 4K UHD, balances high quality images with detection distance. And the compact size gives you more flexiblity to bulid camera solutions that are widely adaptable to various application scenarios and easy to install.
4K UHD
Adopting 4K Ultra HD high performance 1/1.8" Sony Starvis CMOS, the camera module presents vivid and crisp image with high dynamic range in both tele and wide end under any lighting conditions.
AI Analytics
Adopting one of the most advanced AI ISP in industry. This AI camera module is capable of running various machine learning trained detection algorithms (human/vehicle/vessel classification etc) with excellent accuracy, reducing most of the false alert and archiving smart multi-target tracking.
NDAA Compliant
The camera module is fully compliant with the National Defense Authorization Act (NDAA), making them ideal for government and defense applications.
NDAA compliance ensures that our products are free from components and technologies that pose a security risk to the United States government. By choosing NDAA compliant camera modules, you can be confident that your systems are secure and meet the highest standards of government and defense requirements.
 |
A new telephoto 4K camera module that complies with NDAA Comliant. Adopting Sony Starvis IMX334 sensor and the latest optical zoom lens, the imaging effect is excellent. Its SOC has built-in AI computing power, which can achieve multiple object identification algorithms such as fire detection. |
Specifications
| Camera | ||
| Sensor | Type | 1/1.8" Sony Progressive Scan CMOS |
| Effective Pixels | 8.41 M Pixels | |
| Lens | Focal Length | 6.5 ～ 240 mm |
| Optical Zoom | 37× | |
| Aperture | FNo: 1.5 ～ 4.8 | |
| HFOV (°) | 61.1° ～ 1.8° | |
| VFOV (°) | 36.7° ～ 1.0° | |
| DFOV (°) | 68.2° ～ 2.1° | |
| Close Focus Distance | 1m ～ 1.5m (Wide ～ Tele) | |
| Zoom Speed | 4 Sec (Optics, Wide ～ Tele) | |
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
| Resolution | Main Stream: 3840*2160@25/30fps; 1080P@25/30fps; 720P@25/30fps
Sub Stream1: D1@25/30fps; CIF@25/30fps Sub Stream2: 1080P@25fps; 720P@25/30fps; D1@25/30fps |
|
| Video Bit Rate | 32kMbps ～ 16Mbps | |
| Audio Compression | AAC/MP2L2 | |
| Storage Capabilities | TF card, up to 1T | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Min Illumination | Colour: 0.01Lux/F1.5 | |
| Shutter Speed | 1/3 ～ 1/30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | |
| AGC | Support | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Defog | Optical-Defog | |
| Image Stabilisation | Electronical Image Stabilisation (EIS) | |
| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | |
| Video Output | Network | |
| Baud Rate | 9600 (Default) | |
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | |
| Weight | 410g | |
| Power Supply | +9 ～ +12V DC | |
| Power Consumption | Avg: 4.5W; Max: 5.5W | |

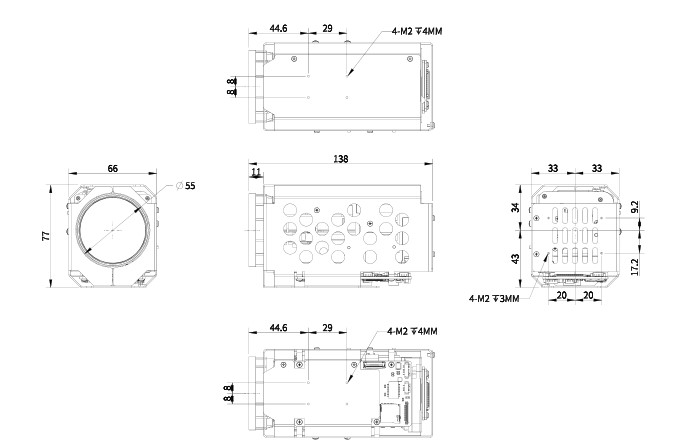

| Dimensions (mm) | Length * Width * Height：138*66*76 | |
