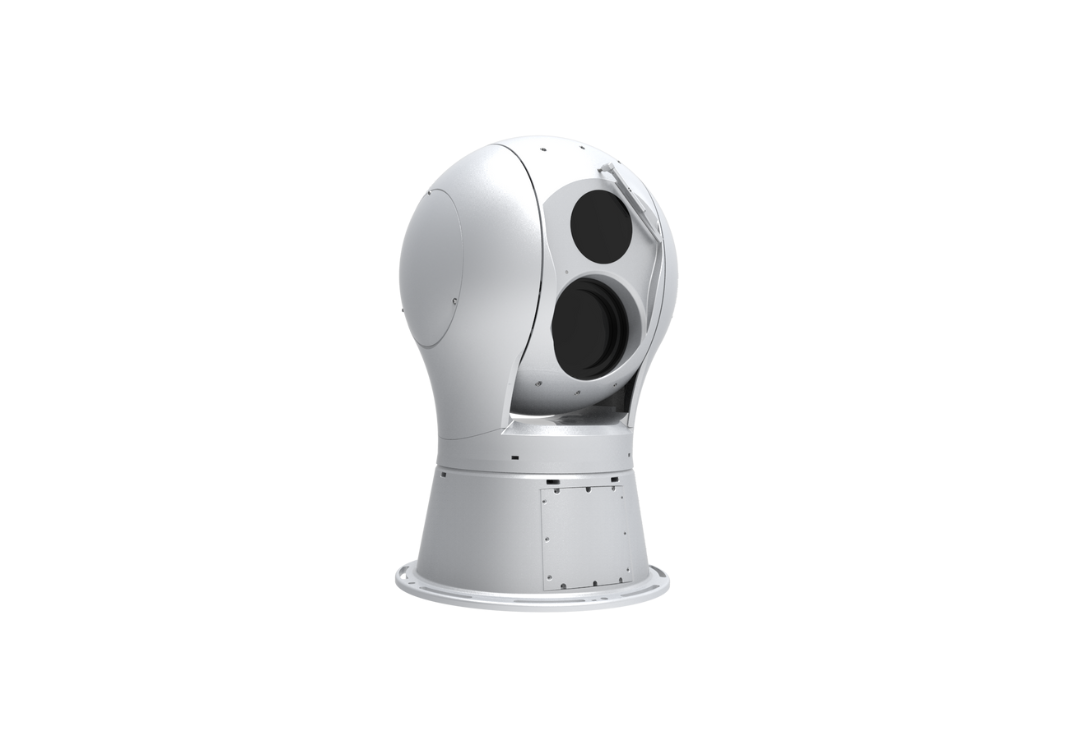

Defender Ultra V50

Outdoor 4MP 775mm Long-range Bispectral VGA 225mm Thermal Sphere Positioning Camera

1/1.8"4MP Visible Sensor

640*512 VGA Thermal Imager
15-775mm 52x Visible Zoom
25-225mm 9x Thermal Zoom
Up to 8KM Vast Coverage

VS-PTZ4052YIO-RV62259-V50

Outdoor 4MP 775mm Long-range Bispectral VGA 225mm Thermal Sphere Positioning Camera

Overview Specifications Download

GET PRICING/INFO

Defender Ultra V50 is a 4MP 775mm long-range bispectral VGA 225mm thermal sphere positioning camera,
specifically designed for ultra-long-range target surveillance. This system is equipped with advanced imaging
systems, exceptional optical image stabilization, and robust tracking capabilities, ensuring reliable surveillance in
the most challenging environments.

Features

Ultra Long-Range Detection

Equipped with a 4MP 15-775mm 52x optical zoom visible camera and a VGA 25-225mm 9x optical zoom thermal imaging camera, ensuring reliable surveillance in the most challenging environments. Bispectral imaging of visible light and infrared thermal imaging enables all-weather, all-time target monitoring, regardless of lighting conditions.

Intelligent Functions

AI-based intelligent detection, recognition, and tracking of targets for improved monitoring efficiency. AI-ISP technology optimizes image quality, enhancing low-light performance and dynamic range, detail and color reproduction.

Easy Integration & Maintenance

Single IP integration of multi-spectral systems for simplified deployment. Supports ONVIF standard protocols for compatibility with various surveillance systems. Modular Design: Facilitates debugging, maintenance, and upgrades.

Excellent PTZ System

Military-grade Design: Adopting a high-strength aluminum alloy housing and spherical windproof design to ensure stable operation in harsh environments. Wide Speed Range: Maximum rotation speed of 120°/s, minimum rotation speed of 0.01°/s, meeting the needs of different surveillance scenarios. High-precision Control: Photoelectric coaxial encoder and servo drive achieve an ultra-high preset position accuracy of 0.05°, ensuring accurate positioning. Powerful Movement: Rare earth permanent magnet motor provides high torque and high speed, enabling quick response to control commands. Rich Data Feedback: Real-time feedback of azimuth, elevation angle, focal length, focus value, and other information, facilitating remote control and status monitoring.

Specifications

Visible Camera
Image Sensor	1/1.8" STARVIS progressive scan CMOS
Resolution	2688 x 1520, 4MP
Lens	15-775mm, 52x motorized zoom, F2.8-8.2 Field of view: 29.1°x 16.7°(H x V)-0.5°x 0.3°(H x V) Near focus distance: 1-10m Zoom speed: <7s(Wide-Tele) Focus modes: Semi-auto/Auto/Manual/One-push
Min. illumination	Color: 0.01Lux, B/W: 0.001Lux, AGC&AI-NR ON, F2.8
Electronic Shutter Speed	1/1-1/30000s
Noise Reduction	2D/3D/AI-NR
Image Stabilization	EIS&OIS
Day/Night	Auto(ICR)/Manual
White Balance	Auto/Manual/ATW/Indoor/Outdoor/Sodium Lamp/Streetlight/Natural
WDR	120dB
Defog	Optical (NIR) + Digital
Anti-heatwave	Auto/Manual
Digital Zoom	16x
DORI Ratings*	Detection	Observation		Recognition		Identification
	12320m	4889m		2464m		1232m
*The DORI standard (based on the IEC EN62676-4:2015 international standard) defines different levels of detail for detection (25PPM), observation (62PPM), recognition (125PPM), and Identification (250PPM). This table is for reference only and performance may vary depending on the environment.
Thermal Camera
Image Sensor	Un-cooled FPA Vanadium Oxide microbolometer Pixel pitch: 12μm Spectral range: 8-14μm Sensitivity (NETD): <50mK
Resolution	640 x 512, VGA
Lens	25-225mm, 9x motorized zoom, F/0.95-F/1.5 Field of view: 17.46°x 14.01°(H x V)-1.96°x 1.56°(H x V) Zoom speed: <5s(Wide-Tele)
Focus Modes	Semi-auto/Manual/One-push
Color Modes	White hot, Black hot, Fusion, Rainbow, etc. 20 user-selectable
Image Stabilization	EIS
Digital Zoom	8x
DRI Ratings*	Detection		Recognition		Identification
Human (1.80 m x 0.55 m)	9375m		2344m		1172m
Vehicle (4.0 m x 1.40 m)	28750m		7188m		3594m
*The DRI distances are calculated according to Johnson criteria: detection(1.5 or more pixels), recognition(6 or more pixels), identification(12 or more pixels). This table is for reference only and performance may vary depending on the environment.
Pan/Tilt
Pan	Range: 360° continuous Speed: 0.01° - 120°/s
Tilt	Range: -90° to +90° Speed: 0.01° - 120°/s
Present Accuracy	0.05°
Preset	300
Tour	8, Up to 32 presets per tour
Scan	5
Privacy Masking	4 areas
Park	Preset/Tour/Scan/Pattern
Scheduled Task	Preset/Tour/Scan/Pattern
Orientation Display	Support
Power-off Memory	Support
Snap Positioning	Support
Proportional P/T to Zoom	Support
3D Positioning	Support
Video and Audio
Video Compression	H.265/H.264/H.264H/ H.264B/MJPEG
Main Stream	Visible: 50/60fps (2688 x 1520, 1920 x 1080, 1280 x 720), 16fps@MJPEG Thermal: 25/30fps (1280 x 1024, 704 x 576)
Sub Stream	Visible: 25/30fps (1920 x 1080, 1280 x 720, 704 x 576/480) Thermal: 25/30fps (704 x 576, 352 x 288)
Image Encoding	JPEG, 1-7fps (2688 x 1520)
OSD	Name, Time, Preset, Temperature, P/T Status, Zoom, Address, GPS, Image overlay, Abnormal info
Audio Compression	AAC (8/16kHz)，MP2L2(16kHz)
Network
Network Protocols	IPv4, IPv6, HTTP, HTTPS, TCP, UDP, RTSP, RTCP, RTP, ARP, NTP, FTP, DHCP, PPPoE, DNS, DDNS, UPnP, IGMP, ICMP, SNMP, SMTP, QoS, 802.1x, Bonjour
API	ONVIF(Profile S, Profile G, Profile T), HTTP API, SDK
User	Up to 20 users, 2 level: Administrator, User
Security	User authentication (ID and password), IP/MAC address filtering, HTTPS encryption, IEEE 802.1x network access control
Web Browser	IE，EDGE，Firefox，Chrome
Web Languages	English
Storage	MicroSD/SDHC/SDXC card (Up to 1Tb) edge storage, FTP, NAS
Analytics
Perimeter Intrusion Detection	Line crossing, Fence crossing, Intrusion
Object Classification	Human & Vehicle Detection and Classification
Fire Prevention	Fire & Smoke Detection, Smoking & Calling Detection
Abnormal Behavior Detection	Loitering Detection, Fast Moving, Crowd Gathering, Parking Detection, Abandoned Object, Missing Object
Auto Tracking	Multiple detection tracking modes
Interface
Alarm Input	7-ch
Alarm Output	2-ch
Audio Input	1-ch RCA
Audio Output	1-ch RCA
Ethernet	1-ch RJ45 10M/100M
RS-485	1-ch
RS-422	1-ch
General
Casing	IP 66, NEMA-4X Standard, Anti-corrosion coating, Integrated Wiper Automatic air cooling, Automatic temperature control, Automatic defog
Power	AC (90V - 264V) to DC48V power supply, Max 650W TVS 6000V, Surge protection, Voltage transient protection
Operating Conditions	Temperature: -40℃ to +70℃/-40℉ to 122℉, Humidity: 90%±3%
Dimensions	Φ500mm x 795mm
Weight	≤90kg
