Best quality Optical Zoom Camera - 30X 4.7~141mm 2MP Starlight Network Zoom Block Camera Module – ViewsheenDetail:

Technical Specification

Specification		Explain
Sensor	Size	1/2.8”progressive scan CMOS
Lens	Focal Length	f：4.7～141mm
	Aperture	FNo：1.5～4.0
	Close Focus Distance	1m～1.5m（Wide～Tale）
	Angle of View	Horizontal:60.5°～2.3°
Video & Audio Network	Compression	H.265/H.264/H.264H/MJPEG
	Audio Codec	ACC, MPEG2-Layer2
	Audio In Type	Line-In, Mic
	Sampling Frequency	16kHz, 8kHz
	Storage	Micro SD card, up to 256G
	Protocol	Onvif,HTTP,RTSP,RTP,TCP,UDP,
	IVS	Tripwire, Intrusion, Loitering Detection, etc.
	General Event	Motion Detection, Tamper Detection, Audio Detection, No SD Card, SD Card Error, Disconnection, IP Conflict, Illegal Access
Resolution		50Hz: 1920 x 1080@25fps; 60Hz: 1920 x 1080@30fps
S/N Ratio		≥55dB（AGC Off，Weight ON）
Minimum Illumination		Color 0.005Lux/ F1.5, B/W 0.0005Lux/ F1.5
Electronic Image Stabilization		ON/OFF
E-Defog		ON/OFF
Exposure Compensation		ON/OFF
HLC		ON/OFF
Day/Night		Auto(ICR)/Manual(Color,B/W)
Zoom Speed		3.5S(Wide-Tele）
White Balance		Auto/Manual/ATW/Outdoor/Indoor
Electronic Shutter Speed		Auto Shutter（1/3s～1/30000s）; Manual Shutter（1/3s～1/30000s）

Exposure	Auto/Manual
DNR	3D; 2D
Flip	Support
Control Interface	2* TTL
Focus Mode	Auto/Manual/Semi-Auto
Digital Zoom	4x
Operating Conditions	（-30°C～+60°C / 20﹪ to 80﹪RH）
Storage Conditions	（-40°C～+70°C / 20﹪to 95﹪RH）
Power Supply	DC 12V±15%
Power Consumption	Less than 4.5W
Dimensions	96.35258.6mm
Weight	285g

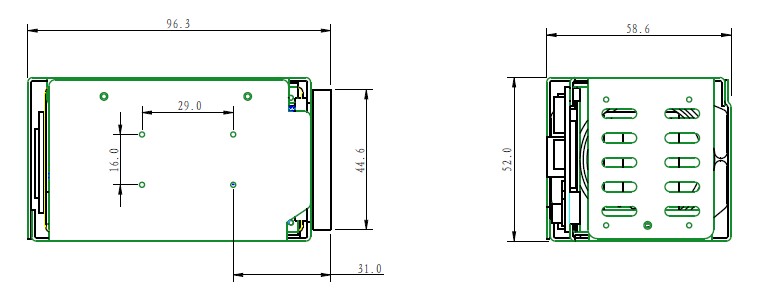

Dimensions

Type	Pin No.	Pin Name	Description
(1) 4PIN Internet Interface	1	ETHRX-	Internet RX-
	2	ETHRX+	Internet RX+
	3	ETHTX-	Internet TX-
	4	ETHTX+	Internet TX+
(2) 6PIN Power&UART Interface	1	DC_IN	DC12V±10%
	2	GND	GND
	3	RXD1	RXD(TTL3.3V)，Pelco Protocol
	4	TXD1	TXD(TTL3.3V)，Pelco Protocol
	5	RXD0	RXD(TTL3.3V)，Visca Protocol
	6	TXD0	TXD(TTL3.3V)，Visca Protocol
(3) Audio&Video Interface	1	AUDIO_OUT	Audio Out(Line Out)
	2	GND	GND
	3	AUDIO_IN	Audio In(Line In)
	4	GND	GND
	5	VIDEO_OUT	Video Out(CVBS)

Product detail pictures:
