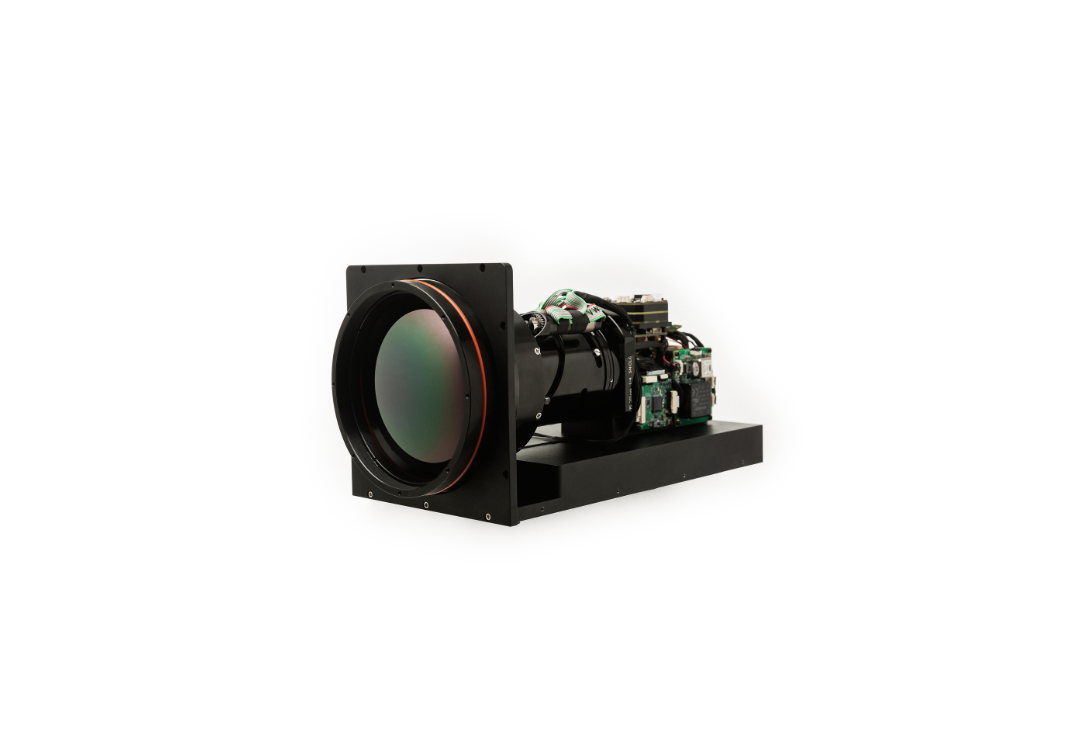

90~900mm 10x Zoom 640×512 Cooled MWIR Thermal Infrared IP Camera Module

VS-MIM6900ANPF-D

· High-Performance 15μm 640*512 Cooled MWIR Detector
· 90-900mm 10x Continuous Zoom Lens
· Advanced Image Processing
· Low Power Consumption Mode
· ONVIF Compatibility and IVS Features

90~900mm 10x Zoom 640×512 Cooled MWIR Thermal Infrared IP Camera Module

Overview Specifications Download

GET PRICING/INFO

90~900mm 10x Zoom 640×512 Cooled MWIR Thermal Infrared IP Camera Module VS-MIM6900ANPF-D

· 640*512, 15μm, Cooled HgCdTe.
· 90-900mm Continuous Zoom Lens, Fast and accurate autofocus. Various focal length lenses are available, which can adapt to different scene requirements.
· Resolution: 1280*1024@25fps.
· NETD as low as 25mk
· The third-generation image ISP algorithm, three-stage NUC non-uniformity correction, DDE digital image detail enhancement, EE edge enhancement, ADR adaptive dynamic range adjustment, and more prominent targets
· Support Various pseudo-colour adjustments, image detail enhancement system functions.
· Supports Electronic Image Stabilization (EIS).
· Supports low power consumption mode for refrigeration pumps to extend product life.
· Supports multi-stream, meet the varying demands of stream bandwidth and frame rate for live preview and storage.
· Support H.265 & H.264 Compression.
· Support IVS: Tripwire, Intrusion, Loitering, etc.
· Support ONVIF, Compatible with VMS and network devices from leading manufacturers.
· Full functions: PTZ control, Alarm, Audio, OSD.

Features

Specifications

MWIR CAMERA
Detector	Type	Cooled HgCdTe
	Pixel Pitch	15μm
	Array Size	640 * 512
	Spectral Band	3.7～4.8 μm
Lens	Focal Length	90 ～ 900mm
	Zoom	10X
	Aperture	FNo.: 4.0
	HFOV	6.11°-0.61°
	VFOV	4.89°-0.49°
Video & Audio Network	Compression	H.265/H.264/H.264H/H.264B/MJPEG
	Resolution	Main: PAL@25fps: 12801024, 1280720, 640512 NTSC@30fps: 12801024, 1280720, 640512 Sub1: PAL@25fps: 640512, 352288 NTSC@30fps: 640512, 352240 Sub2: PAL@25fps：640512 352288 NTSC@30fps：640512 352240
	Video Bit Rate	32kbps ～ 16Mbps
	Audio Compression	AAC / MP2L2
	Storage Capabilities	TF card, up to 1TB
	Network Protocols	Onvif, HTTP, RTSP, RTP, TCP, UDP
	General Events	Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access
	IVS	Tripwire, Intrusion, Loitering, etc.
Pseudo-colour	Support white heat, black heat, fusion, rainbow, etc. 18 kinds of pseudo-colour adjustable
Digital Zoom	1×, 2×, 4×, 8×
Image Stabilisation	Electronic Image Stabilization (EIS)
Image Settings	Brightness, Contrast, Sharpness, etc.
Noise Reduction	2D / 3D
Flip	Support
Crosshair	Support
Dead Pixel correction	Support
Anti-scorch	Support
Focus Model	Auto/Manual
External Control	TTL3.3V, Compatible with VISCA ; RS-485, Compatible with PELCO
Video Output	Network
窗体顶端窗体底端 Baud Rate	9600 (Default)
Operating Conditions	-30℃ ～ +60℃; 20﹪ to 80﹪RH
Storage Conditions	-40℃ ～ +70℃; 20﹪ to 95﹪RH
Cooling Time	≤7min @25℃
Refrigeration Pump Life	20000 hours (Supports hibernation mode)
Low power consumption of refrigeration pump	Supports sleep mode
Weight	5.5KG
Power Supply	Refrigeration Pump: 24V DC±10%; Others: 9~12V DC
Power Consumption	Max: 31W; Avg: 11W
Dimensions (mm)	348mm * Ø186mm
