2MP 42X Outdoor IR Speed Dome Security Camera
2MP 42X Outdoor IR Speed Dome Security CameraDetail:
Our primary goal is to offer our clients a serious and responsible business relationship, providing personalized attention to all of them for Low price for China 2MP 42X Ourdoor IR Speed Dome Security Camera, We invitations you and your company to prosper along with us and share a vibrant long term in worldwide current market.
Feature
1、2MP, 1/2.8″ Progressive scan CMOS, up to 1920×1080@30fps resolution
2、Min. illumination: 0.005Lux(color); 0.0005Lux(B/W)
3、Support H.265H.264 video compression
4、Rapid Auto-focus
5、42× Optical Zoom (7～300mm), 4× Digital Zoom
6、Up to 500m（L5）/ 800m（L8）
7、Auto-tracking, Tripwire, intrusion, Motion detection
8、3D DNR, Defog, WDR, HLC, BLC, ROI
9、Pan range：360° endless，tilt range：-10°~90°
10、Support ONVIF, CGI, GB/T28181, etc.
11、IP 66, TVS 6000V
Technical Specification
| Video | Sensor | 1/2.8＂ Progressive Scan CMOS |
| Min. illumination | 0.005Lux(color); 0.0005Lux(B/W) | |
| Resolution | 50Hz: Main stream(1920×1080@25fps) 60Hz: Main stream(1920×1080@30fps) | |
| Video Compression | H.265/H.264/H.264H/MJPEG | |
| AGC | Auto; manual | |
| White Balance | Auto / Manual / Natural light / ATW(Auto-tracking White Balance) / Indoor / Outdoor / Sodium Lamp | |
| S/N Ratio | ≥55dB（AGC Off，Weight ON） | |
| Visible Image Stabilization | Electronic Image Stabilization | |
| Defog | E-Defog | |
| BLC | Support | |
| HLC | Support | |
| Day/Night | Auto(ICR)/Manual(Color, B/W) | |
| Electronic Shutter Speed | Manual / Auto, 1/3～1/30000, | |
| Exposure | Manual / Auto | |
| Noise Reduction | 2D NR; 3D NR | |
| Flip | 0°/180° | |
| Focus Mode | Auto/Semi-automatic/Manual | |
| Digital Zoom | 4× | |
| Lens | Focal Length | f：7～300mm |
| Aperture Range | F 1.6～6.0 | |
| Working Distance | 1m～10m（wide-tele） | |
| Field of View | 42～1.2（°） Horizontal | |
| Zoom Speed | Approx. 6S（optical lens, wide-tele） | |
| Features | Alarm Event | Motion detection/privacy mask/ SD card abnormality |
| Smart Features | Intrusion, Tripwire, Region Entrance, Region Exiting, Loitering, Gathering, Fast Moving, Parking, Object Abandoned/Missing | |
| Face Detection | Support | |
| Laser Distance | 500m（L5）/ 800m（L8） | |
| Laser Sync with Zoom | Support | |
| Pan / tilt unit | Range of Pan / Tilt | Pan: 360° Continuous Rotate；tilt: -10° ~ 90° |
| Pan Speed | Configurable, From 0.1°~150°/s, Preset Speed: 180°/s | |
| Tilt Speed | Configurable, From 0.1°~80°/s, Preset Speed: 80°/s | |
| Preset | 255 | |
| Patrol Scan | 4, Up to 10 Presets Per Patrol | |
| Pattern Scan | 1, Record 32 actions in a row | |
| Line Scan | 1 | |
| Power Off Memory | Presets/ Patrol Scan/ Pattern Scan/ Line Scan/360° Pan Scan | |
| Park Action | Presets/ Patrol Scan/ Pattern Scan/ Line Scan/360° Pan Scan | |
| 360° Pan Scan | 1 | |
| Interface & protocol | Power | AC 24V |
| Network | Built-in RJ45; 10M/100M Ethernet Interface | |
| Audio Input / Output | 1 Input, 1 Output | |
| Alarm Input / Output / Action | 1 Input；1 Output；Preset/Patrol Scan/Pattern Scan/SD Card Record/SD Card Snapshot/Relay Output/Smart capture/FTP upload/Email linkage | |
| Analog Video Output | 1.0V[p-p] / 75Ω，PAL or NTSC, BNC | |
| RS485 | Half-Duplex, PELCO-P and PELCO-D | |
| Storage | MicroSD，Max. 256G (Recommended class10) | |
| Network Protocol | TCP/IP，HTTP，DHCP，DNS，DDNS，RTP，RTSP，PPPoE，SMTP，NTP，UPnP， FTP | |
| Platform Protocol; | ONVIF, GB/T28181 | |
| General | Power Consumption | 15W |
| Work Temperature / Humidity | -20℃ ~ 60℃；Humidity: 90% or Less | |
| Protection Level | IP66; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection | |
| Dimensions | Φ237(mm)×335(mm) |

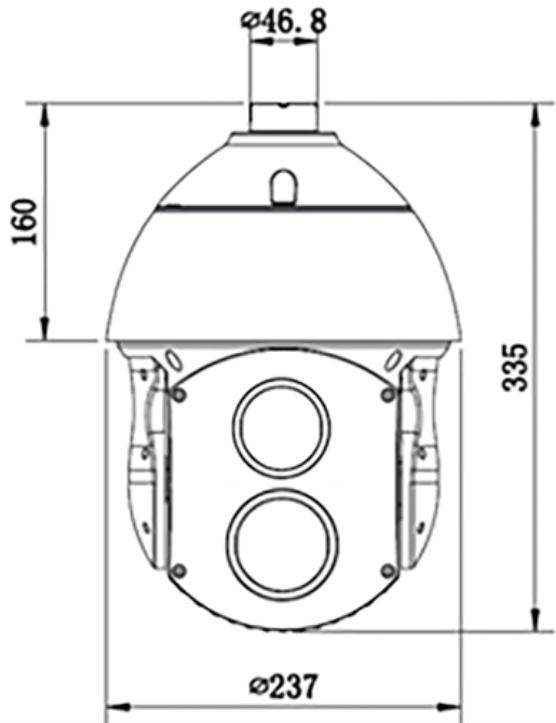

Dimensions
