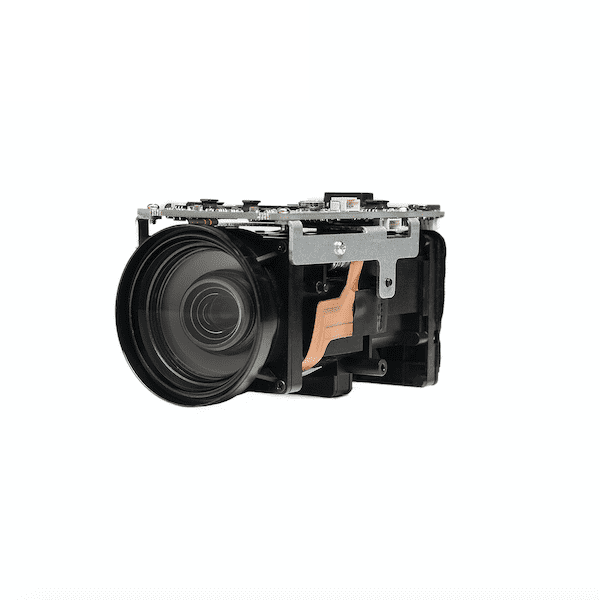

30X 6~180mm 4K Drone Zoom Camera Module
VS-UAZ8030M· Powerful 30x 4K zoom gimbal camera
· Using SONY 1/1.8 inch sensor
· 3-Axis gimbal stabilizer, ± 0.008 degree control precision
· Supporting the overlay of GPS information into videos, subtitle files, snapshots
· Support intelligent tracking
>Designed specifically for Drones/UAV
>Using SONY 1/1.8 inch Exmor R CMOS,
>30X optical zoom ,6~180mm , 4X digital zoom
>Intelligent tracking function based on optical flow
>Support H265 encoding.
>Fast and accurate focusing
>Supporting flight log such as longitude, latitude, height
| The control precision is as high as ±0.008 degree which leading the industry. Even when the camera is in the maximum focal length and fast flight, it can still maintain the image stability. |
 |
 |
30x optical zoom ,the snap picture resolution can be up to 16MP |
|
It supports recording GPS information when taking photos, which can be used for Pix4D to create maps and 3D models. |
 |
 |
We provide ground control software and control protocols which is easy to operate. |
| Real footage shot by 30X 4K 8MP Drone Camera VS-UAP8030M |
| Specification | |
| Sensor | 1/1.8" Progressive Scan CMOS |
| Focal Length | F: 6 ～ 180mm, 30× zoom |
| Aperture | FNo: 1.5 ～ 4.3 |
| Minimum Working Distance | 1~ 1.5m (Wide-Tele) |
| Zoom Speed | 4.5 Sec (Optics, Wide-Tele) |
| FOV | 63° ~ 2.5° |
| Minimum Illumination | 0.1Lux/1.5 (Color); 0.01Lux/F1.5 (Black & White) |
| Day & Night | Auto(ICR)/Manual(Color,B/W) |
| SNR | ＞55dB |
| White Balance | Manual/Auto/Natural light/Indoor/OutDoor/Sodium Lamp |
| Electronic Shutter Speed | Auto Shutter(1/3 Sec～1/30000 Sec) , Manual Shutter(1/3 Sec～1/30000 Sec) |
| Noise Reduction | 2D, 3D |
| Exposure | Auto/Manual |
| Defog | E-Defog |
| Video Compression | H.264H/H.265/MJPEG |
| Video Resolution | Netowrk: 50Hz: 25fps@3840 x 2160(8MP） |
| Storage | TF card, Max to 256GB |
| Image Stabilization Stabilization | ON/OFF |
| Output Interface | Ethernet |
| Control Interface | TTL×1 ( VISCA Protocal) |
| Network Protocols | Onvif/HTTP/RTSP/RTP/TCP/UDP |
| Power | 9V~12V DC |
| Consumption | Max: 5.5W, Normal: 4.5W |
| Working Conditions | -30℃ ~ +60℃ / 20% to 80% RH |
| Dimension (mm) | 122.4*54*62.2 |
| Weight | 241g |
