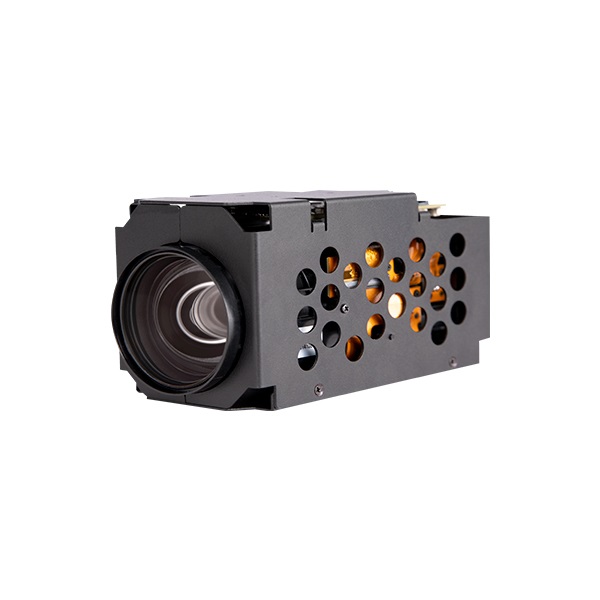

2MP 303mm 44× Network Starlight Zoom Camera Module
Features
VS-SCZ2044KI-8 is a new NDAA Comliant long range IP zoom module. Equipped with Sony 2.9um Starvis sensor and the latest high definition optical zoom lens, the imaging effect is very excellent. Its SOC has built-in AI computing power, which can achieve multiple object identification algorithms such as fire and smoke deteciton.Therefore, it is particularly suitable for major scenarios such as border and coastal defense, forest fire prevention, and port monitoring
VS-SCZ2044KI-8 is an upgraded model of VS-SCZ2042HA(-8). please read: IP zoom module upgrade notice for more information.

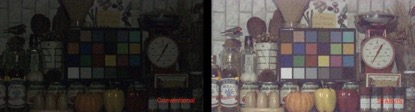

Starlight Technology
The 44x camera module is based on Sony STARVIS CMOS sensor with 2.9 µm pixel size. The camera utilizes ultra-low light sensitivity, high signal to noise (SNR) ratio, and uncompressed Full HD streaming at 60 fps.

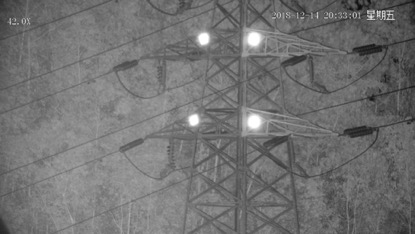

Support for Linked Laser Illuminators
The maximum focal length is 303 millimeters, which can be synchronized with laser zoom to achieve the best lighting effect.

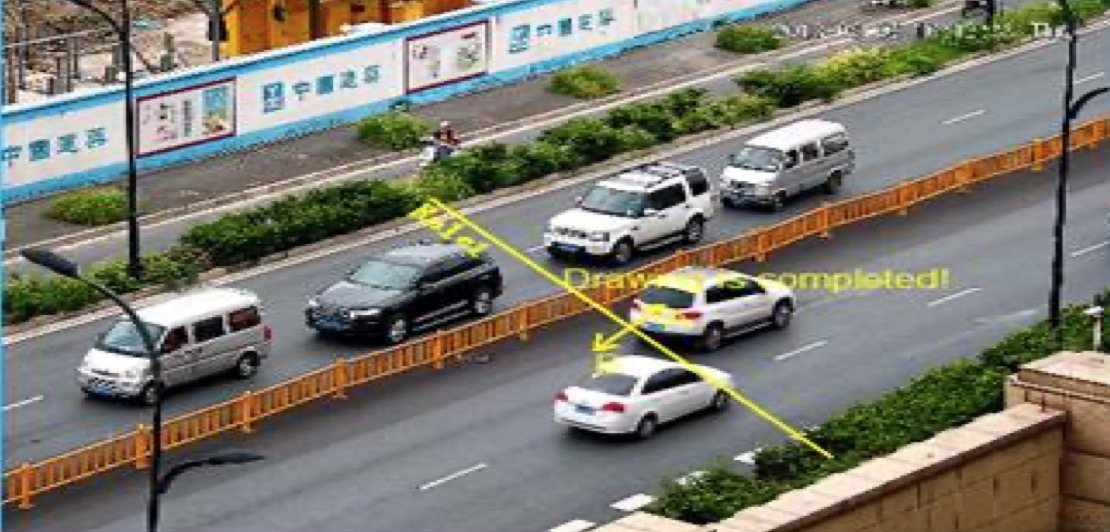

IVS
Support video analysis such as regional intrusion detection, and can be linked with PTZ and alarm.
Specification
| Camera | ||
| Sensor | Type | 1/2.8" Sony Progressive Scan CMOS |
| Effective Pixels | 2.13 M Pixels | |
| Lens | Focal Length | 6.9 ～ 303mm |
| Optical Zoom | 44 × | |
| Aperture | FNo: 1.5 ～ 4.8 | |
| HFOV | 58.9° ～ 1.5° | |
| VFOV | 35.4° ～ 0.8° | |
| DFOV | 65.9° ～ 1.7° | |
| Close Focus Distance | 1m ～ 1.5m (Wide ～ Tele) | |
| Zoom Speed | 4 Sec (Optics, Wide ～ Tele) | |
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG |
| Video Compression | Main Stream: 1920*1080@50/60fps | |
| Video Bit Rate | 32kbps ～ 16Mbps | |
| Audio Compression | AAC/MP2L2 | |
| Storage Capabilities | TF card, up to 256GB | |
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | |
| General Events | Motion Detection, Tamper Detection, Scene Changing, Audio Detection, SD Card, Network, Illegal Access | |
| IVS | Tripwire, Intrusion, Loitering, etc. | |
| Upgrade | Support | |
| Min Illumination | Colour: 0.005Lux/F1.5; | |
| Shutter Speed | 1/3 ～ 1/30000 Sec | |
| Noise Reduction | 2D / 3D | |
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | |
| Flip | Support | |
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | |
| Exposure Comp | Support | |
| WDR | Support | |
| BLC | Support | |
| HLC | Support | |
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | |
| AGC | Support | |
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | |
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | |
| Digital Zoom | 16× | |
| Focus Model | Auto/Manual/Semi-Auto | |
| Defog | Optical-Defog | |
| Image Stabilisation | Electronic Image Stabilisation (EIS) | |
| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | |
| Video Output | Network | |
窗体顶端 窗体底端 Baud Rate | 9600 (Default) | |
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | |
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | |
| Weight | 618.8g | |
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | |
| Power Consumption | Static: 4.5W; Max: 5.5W | |
| Dimensions (mm) | Length * Width * Height：138*66*76 | |
