10X 4.8~48mm Mini 4K USB IP Zoom Camera Module NDAA Compliant
Overview
This zoom camera module adopts an 8 megapixel 1 / 2.8 '' sensor and a 10x Optical Zoom lens. Its ultra-high pixels and small volume provide an integrated solution for short-range ultra-high definition video monitoring
This series adopts mechanical ircut filter and WDR technology, which can obtain the highest image quality under complex lighting conditions in the daytime.
Combined with starlight technology, the video of the camera remains excellent in low light environment.
Small Size
Thanks to the excellent structural design, the size of the camera module is limited to 64.1 * 41.6 * 50.6 (mm), and the weight is limited to 146g. It is very light and compact, so that it can be integrated into the UAV pod and robot vision system.
USB and Network Video Output
The camera supports USB and network dual output, which can be better compatible with back-end devices, especially in video conference application scenarios
4K Ultra HD
The maximum video output of the camera is 3840 x 2160 @ 30fps, and the focal length is 4.8 ~ 48mm. It is suitable for drone gimbal and short-range ultra-high definition surveillance.

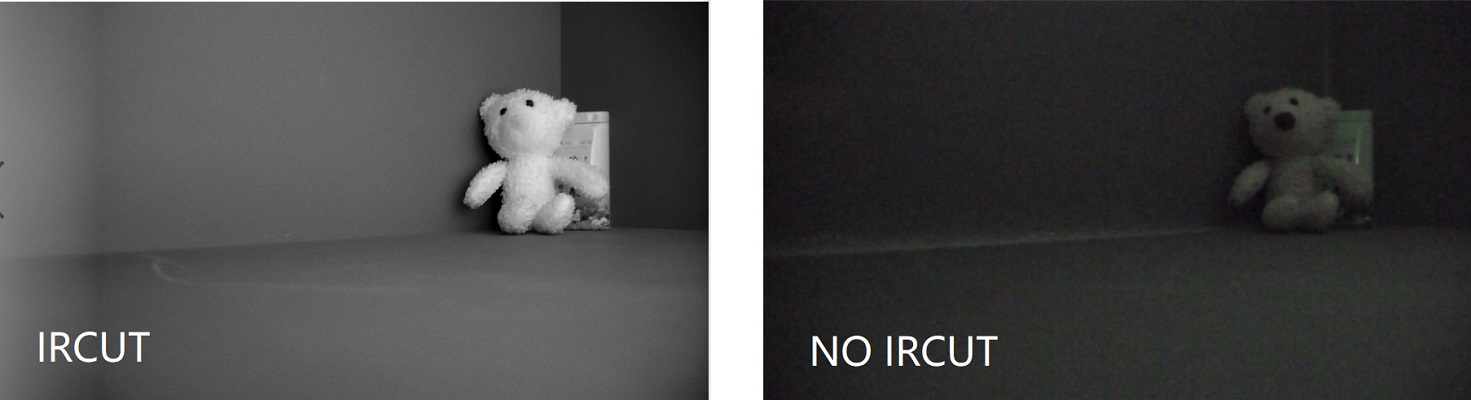

IRCut Switching
Equipped with mechanical IRCUT, it can also ensure sufficient light input in low light environment, so as to obtain excellent image quality
Technical Specification
| Camera | |||
| Sensor | Type | 1/2.8" Sony Progressive Scan CMOS | |
| Effective Pixels | 8.42 M pixels | ||
| Lens | Focal Length | 4.8 ～48mm | |
| Optical Zoom | 10× | ||
| Aperture | FNo: 1.7 ～ 3.2 | ||
| HFOV (°) | 60° ～ 6.6° | ||
| VFOV (°) | 36° ～ 3.7° | ||
| DFOV (°) | 67° ～ 7.6° | ||
| Close Focus Distance | 1m ～ 2m (Wide ～ Tele) | ||
| Zoom Speed | 3 Sec (Optics, Wide ～ Tele) | ||
| Video & Audio Network | Compression | H.265/H.264/H.264H/MJPEG | |
| Video Compression | Main Stream: 3840*2160@25/30fps;1080P@25/30fps 720P@25/30fps | ||
| Video Bit Rate | 32kbps ～ 16Mbps | ||
| Audio Compression | AAC/MP2L2 | ||
| Network Protocols | ONVIF, HTTP, RTSP, RTP, TCP, UDP | ||
| IVS | Tripwire, Intrusion, Loitering, etc. | ||
| Upgrade | Support | ||
| Min Illumination | Colour: 0.01 Lux/F1.5B/W: 0.001Lux/F1.5 | ||
| Shutter Speed | 1/3 ～ 1/30000 Sec | ||
| Noise Reduction | 2D / 3D | ||
| Image Settings | Saturation, Brightness, Contrast, Sharpness, Gamma, etc. | ||
| Flip | Support | ||
| Exposure Model | Auto/Manual/Aperture Priority/Shutter Priority/Gain Priority | ||
| Exposure Comp | Support | ||
| WDR | Support | ||
| BLC | Support | ||
| HLC | Support | ||
| S/N Ratio | ≥ 55dB（AGC Off, Weight ON） | ||
| AGC | Support | ||
| White Balance (WB) | Auto/Manual/Indoor/Outdoor/ATW/Sodium Lamp/Natural/Street Lamp/One Push | ||
| Day/Night | Auto (ICR)/Manual (Colour, B/W) | ||
| Digital Zoom | 16× | ||
| Focus Model | Auto/Manual/Semi-Auto | ||
| Defog | Optical-Defog | ||
| Image Stabilisation | Electronical Image Stabilisation (EIS) | ||
| External Control | 2× TTL3.3V, Compatible with VISCA and PELCO protocols | ||
| Video Output | Network | ||
| Baud Rate | 9600 (Default) | ||
| Operating Conditions | -30℃ ～ +60℃; 20﹪ to 80﹪RH | ||
| Storage Conditions | -40℃ ～ +70℃; 20﹪ to 95﹪RH | ||
| Weight | 146g | ||
| Power Supply | +9 ～ +12V DC (Recommend: 12V) | ||
| Power Consumption | Static: 4.5W; Max: 5.5W | ||
| Dimensions (mm) | Length * Width * Height：64.1*41.6*50.6 | ||

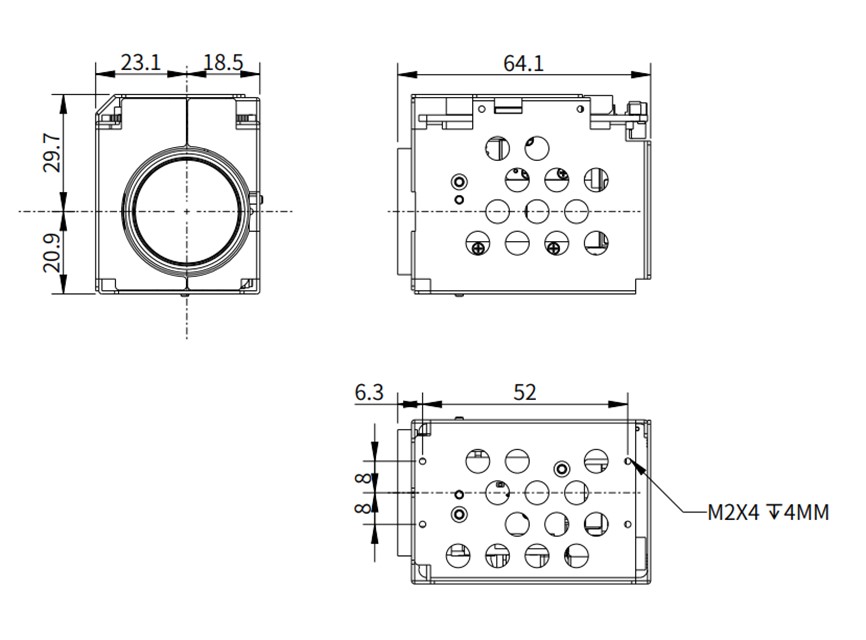

Dimensions
.png)
